Product Details

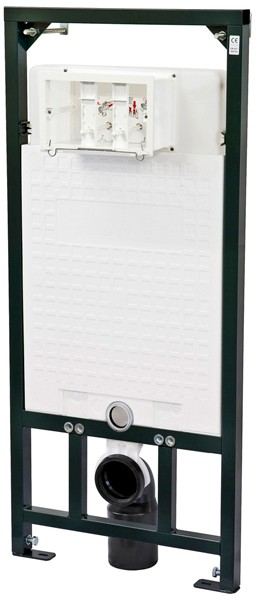

Concealed frame for wall hung WC and dual flush cistern. Size 1176 x 510 mm. Francis Pegler flush plate required.

• Pre-wall brackets and waste bend included.
• Concealed dual flush cistern included.
• Long-life, fast and precise flush valve.
• Integrated Isolation valve.
• For use with Francis Pegler flush plates only.
• For wall-hung WC with bolt fixings at 180mm or 230mm centres.
• Good for heavy loads.

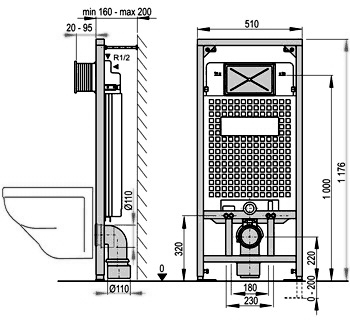

• Frame size: 1176H x 510W mm.
• Self-supporting frame.
• Adjustable legs (0 to 200mm).
• Easy adjustment of flush plate rods.
• Fully insulated against condensation and improves sound reduction.
• Connections: 1/2" inlet.
• 10 Year warranty: Francis Pegler warranty this WC frame for 10 years.

$264.27 including delivery
MSRP: $384.73
Save: $120.46

Product Code: FP-FRAME06

The Francis Pegler range of frames allows you to create a new bathroom without all the constraints of floor standing ceramics. These concealed frames are hidden within a solid or prefabricated wall. Pegler system frames can be used in the tightest of spaces, allowing you to create stunning bathrooms even with little space.

Pegler Yorkshire is well known and respected as one of the leading manufacturers of advanced plumbing, heating and engineering products in the world. Pegler products are designed to meet and pass all appropriate product specification and performance standards (e.g. British Standards).
